EA1250

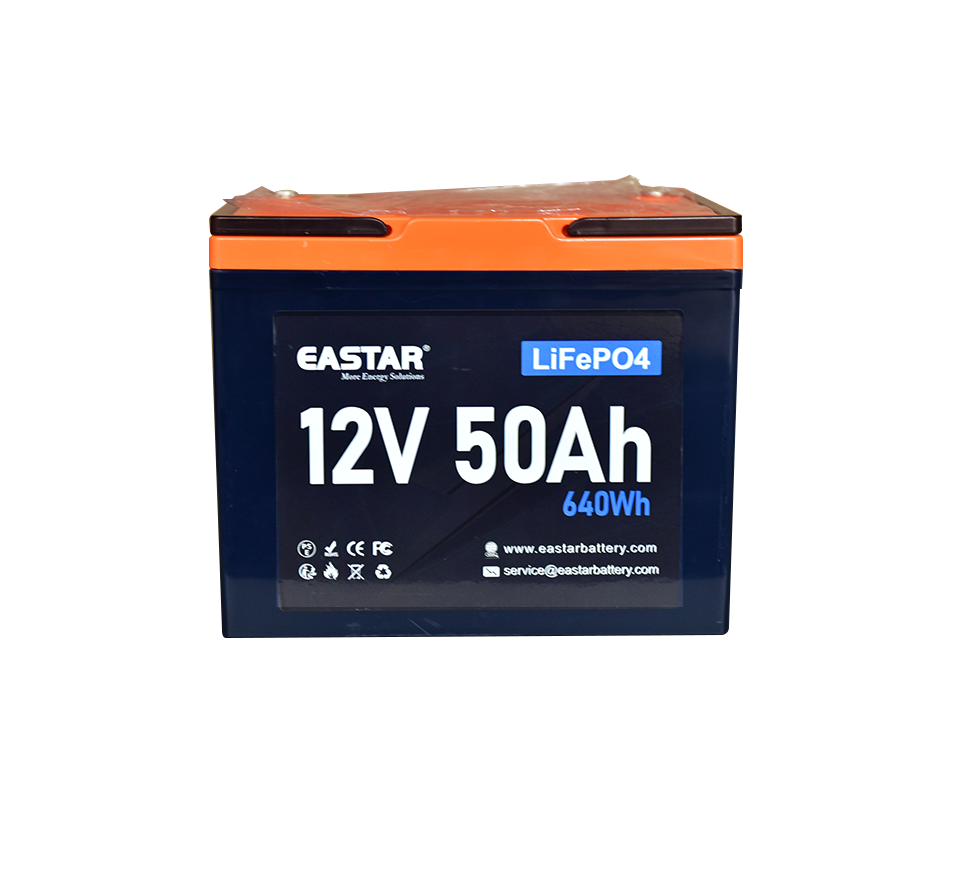

12V 50AH LiFePO4 Battery for solar

12V 50AH LiFePO4 Battery for solar
12V 50AH LiFePO4 Battery for solar

12V 50AH LiFePO4 Battery for solar

EASTAR'S 12V lithium battery has the outstanding features of large capacity per unit weight, high discharge power, fast charging, long cycle life, and high stability under high temperature and high heat environment. built-in BMS management system, which can independently realize all kinds of protection as well as protection recovery, and the modules can be used directly in parallel. Lithium alternative lead-acid, not only can save battery space, reduce battery weight, but also has a long life, wide operating temperature range, support for high-current discharge and a series of advantages.

Description

Features


Using the technology of lithium iron phosphate cell, superior safety.

thousands of cycles,100%DOD,under normal conditions

Built-in automatic protection for over-charge, over discharge.over

current and over temperature

Maintenance free

Interal cell balancing

Lighter weight: About 40% -50% of the weight of a comparable

lead acid battery.

Wider temperature range:-20℃-60℃


Application

UPS

Solar &Wind power system

Golf Cart

Electric vehicle , E-bike, E-rickshawe.g.

Lighting



CharacteristicSpecification
Nominal Voltage12.8V
Nominal Capacity50Ah @ 0.2C
Energy (Electrical)640Wh
Internal Resistance60mΩ
Cycle Life>3000 Cycles @ 0.2C Charge/Discharge at 80% DOD, End of Life 80% Capacity
Self Discharge (per month)≤3.0% at 25℃
Charge Voltage14.6 ± 0.2V
Charge ModeCC/CV (Constant Current/Constant Voltage)
Charger Current20A
Max Charge Current50A
Discharge Current20A
Max Continuous Discharge Current50A
Max Pulse Discharge Current100A (≤3s)
Discharge Cut-off Voltage10.0V
Charge Temperature0℃ to 45℃ (32℉ to 113℉) @ 60 ± 25% Relative Humidity
Discharge Temperature-25℃ to 60℃ (-4℉ to 140℉) @ 60 ± 25% Relative Humidity
Storage Temperature0℃ to 45℃ (32℉ to 113℉) @ 60 ± 25% Relative Humidity
Water Dust ResistanceIP65
Plastic Case MaterialABS
Dimensions (L x W x H)229mm x 138mm x 208mm
WeightApprox. 7kg
TerminalM8
12V 50.png
